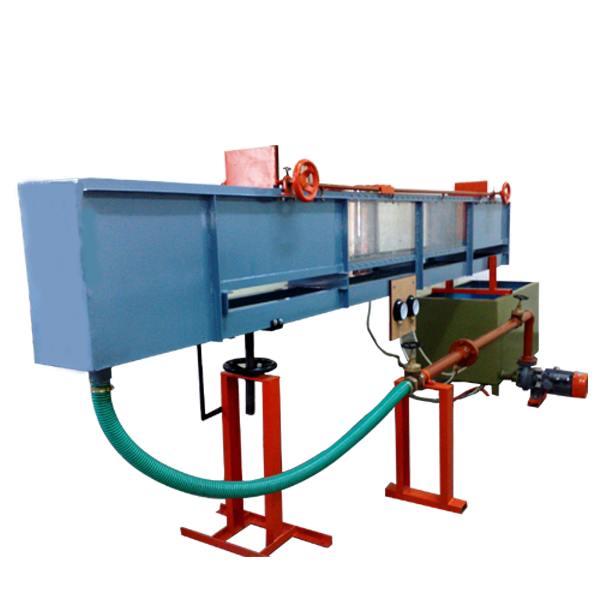

TILTING FLUME
| Technical Specification: | |
|
Structure housing – Mild Steel.
Sump tank (S.S.)
The upstream and downstream sections are provided
with adjustable gates with rack
and pinion arrangement.
For visual observation of flow pattern along the fl
ume section, both sides of flume
are provided with transparent Perspex sheet.
Discharge of water can be collected by the help of
a calibrated Orifice meter which
is connected with two pressure gauges
Control valves and drain valve.
G.I pipe line
Strong M.S stand. |
|
| NOTE: APPARATUS SUBJECTED TO BE CHANGE AS PER DEMAND |
 |
