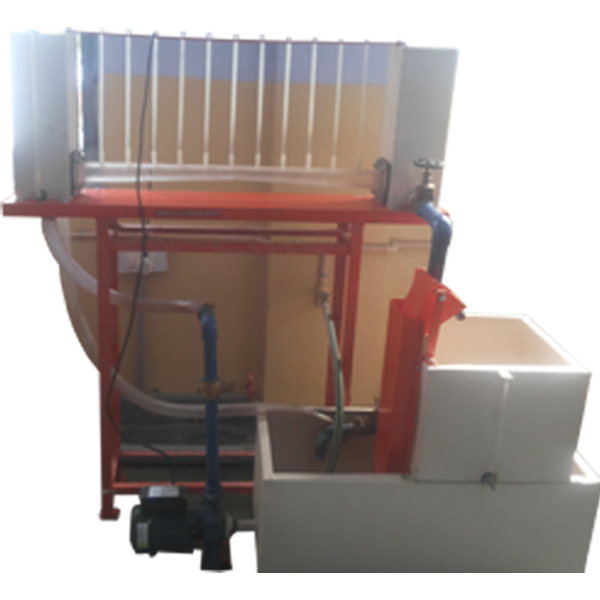

APPARATUS FOR VERIFICATION OF BERNOULLI THEOREM
| Structure housing – Mild Steel.
Sump tank (S.S.)
Collecting tank (S.S.)
A Perspex acrylic duct of rectangular cross section of 40mm X 40mm at the
entrance and exit while 40mm X 20mm at middle.
Piezometric tubes tapping at an equal distance along the length of duct.
The duct is connected with the tank at its entrance and exit end. The tanks are
having the provision of overflow and regulation valve respectively.
Centrifugal monoblock pump – Single phase 0.5hp capacity.
Control valves and drain valves of Gunmetal.
G.I pipe line
Strong M.S stand.
