Unsymmetrical Bending Apparatus (Digital)

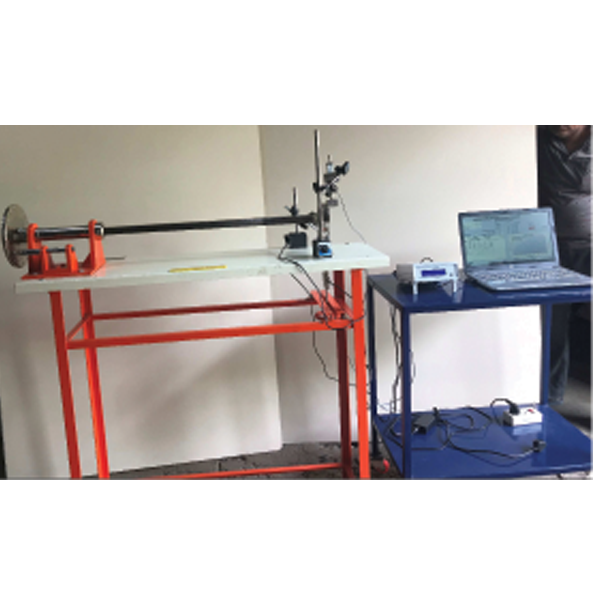

||Unsymmetrical Bending Apparatus consists of an angle of size 1" x 1" x 1/8" or in equivalent metric units of length 80cm is tied as a cantilever beam. The beam is fixed at one end such that the
rotation of 450 intervals can be given and clamped such that the principal axis of its
cross-section may be inclined at any angle with the horizontal and vertical planes.
Also arrangement is provided to apply vertical load at the free end of the cantilever
and to measure horizontal and vertical deflection of the free end. Apparatus is
supplied complete with a supporting stand.
Two LVDT with 25mm travel (with magnetic base) and a Load Cell of 10 Kg.
capacity with a digital Indicator is supplied with the apparatus. Digital Indicator is
capable to transfer the data through USB to the computer are supplied with the
apparatus. Educational software also supplied with the set up to make calculation and
TAG: Unsymmetrical Bending Apparatus (Digital), Structural Laboratory Items, engineering models
Pls feel free to send your requirment For Unsymmetrical Bending Apparatus
