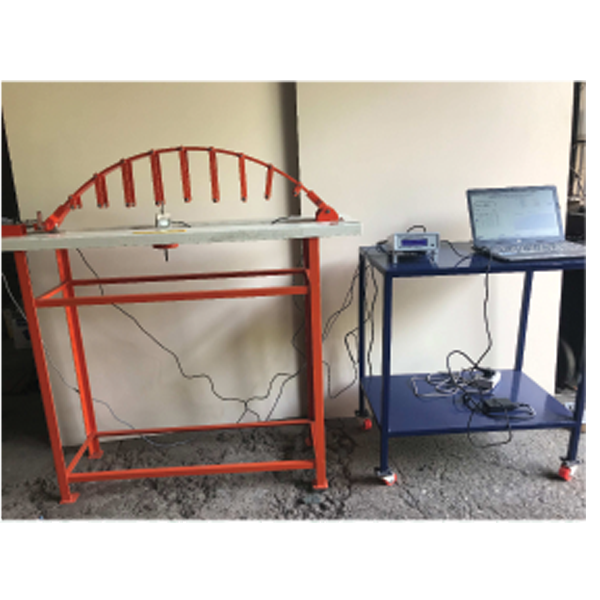

Two Hinged Arch Apparatus (Digital)

Description:
  Two Hinged Arch Appratus has a span of 100cm and rise 25cm. Both ends are hinged but one of the ends is also free to move longitudinally. Two Load Cell of 10 Kg. capacity is fitted at this end for the application of known horizontal inward force for measuring the horizontal thrust. Along the horizontal span of the arch various points are marked at equidistant for the application of load. A LVDT with 25mm travel (with magnetic base) is supplied with the apparatus. Apparatus is supplied complete with a supporting stand. A digital Indicator is supplied with the apparatus. Digital Indicator is capable to transfer the data through USB to the computer. Educational software also supplied with the set up to make calculation and complete results/data.


Pls feel free to send your requirment For Two Hinged Arch Apparatus
