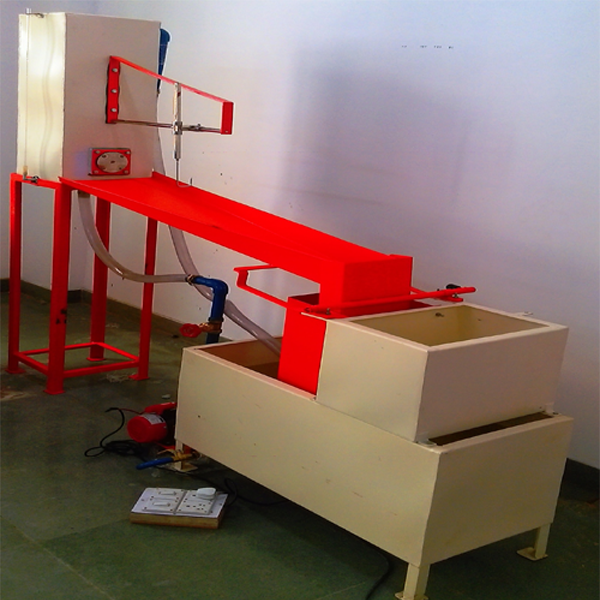

APPARATUS FOR CONDUCTING ORIFIC & MOUTHPIECE EXPERIMENT
| Structure housing – Mild Steel.
Sump tank (S.S.)
Collecting tank (S.S.)
A supply tank of S.S. sheet with over flow arrangement and gauge glass tube
is provided. The tank has the provision for fixing the various orifices and
mouth pieces (inter changeable).
To measure the X-Y coordinates of jet coming out of orifice/mouthpiece, scale
and sliding apparatus.
Centrifugal monoblock pump – Single phase 0.5hp capacity.
Control valves and drain valves of Gunmetal.
G.I pipe line
Strong M.S stand.
|NOTE: APPARATUS SUBJECTED TO BE CHANGE AS PER DEMAND|
